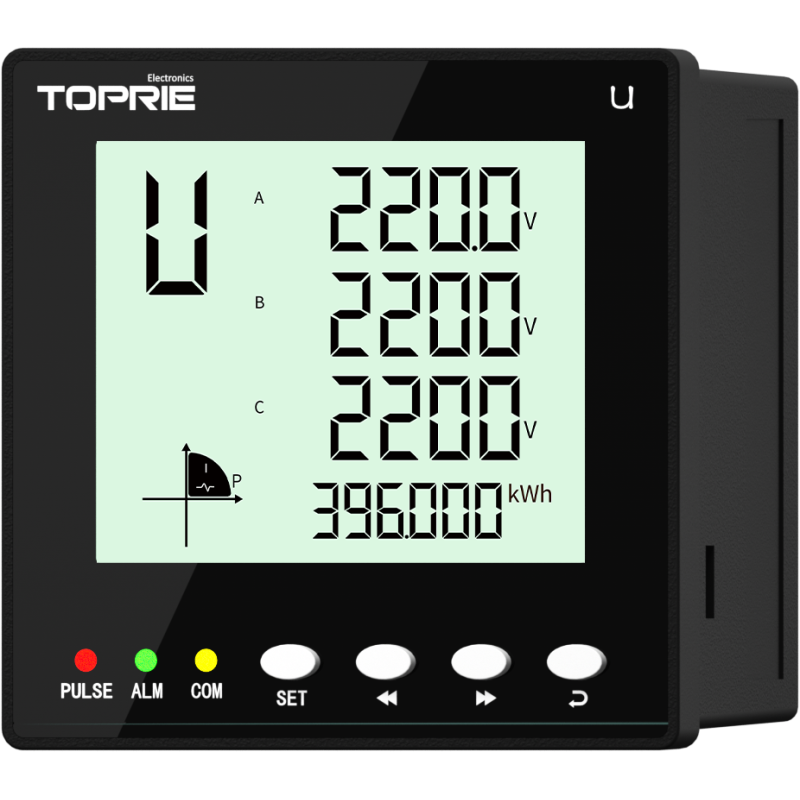

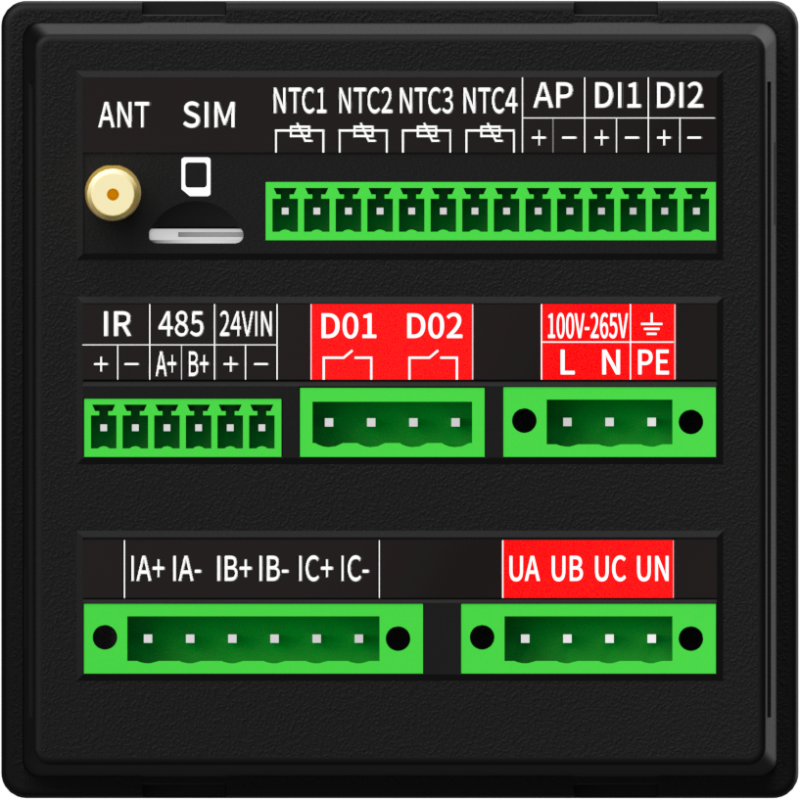

Power Current Voltage Measurement Electric Energy Panel Meter
|
Communication
RS485(modbus RTU)
Display
LCD display
Rated current
5A
Accuracy
RMS measurement
Active energy:class 0.5
Power supply
ADC100V~265V
Consumption
3W
|
|
|
Installation
Panel mounted
Embedded
Dimension(L*W*H)
Panel size(L*W) 96*96mm
Open hole size(L*W)92*92m
Housing(L*W*H)96*96*87mm
Switch relay
2 channel DO and 2 channel DI
|
|
Technical parameters
| Wire Method |
3 phase 3 wire, 3 phase 4 wire |
| Voltage Measuring Range |
ADC65V~480V |
| Voltage Overload |
1.2 times instant 2 times per 10Sec |
| Voltage Consumption |
<1VA per phase |
| Voltage Resistance |
≥300KΩ |
| Voltage Accuracy |
RMS measurement,accuracy:class 0.2s |
| Current Measuring Range |
AC0.015A~5A continous limit current:6A |
| Current Overload |
Continutity:1.2 times instant:10 times per 10 Secs |
| Current Consumption |
＜0.4VA per phase |
| Current Resistance |
＜20mΩ |
| Current Accuracy |
RMS measurement accuracy class 0.2s |
| Frequency Range |
40~65Hz accuracy 0.01Hz |
| Resdual Current |
Range:0.01A~5A accuracy class 0.5s |
| Power |
Active,reactive,apparent power, accuracy class 0.5s |
| Active Energy |
Active energy accuracy class 0.5s reactive energy accuracy class 0.5s |
| Display |
LCD Screen |
| Operation Voltage |
AC/DC100V~265V |
| Consumption |
3W |
| Output Digital interface |
RS485 Modbus RTU / MQTT |
| Pulse Output |
3 channel active energy pulse output,pulse constant 3200imp/kWh |
| Operation Environment |
Temperature:-20℃~60℃ Humidity 5%~85% RH (No condensing)without corrosive gas,altitude<3000m |
| Transport and Save Environment |
-25℃~70℃ |
| Isolation Voltage |
Signal input and power supply 1600VAC,signal input and output 1600VAC, power and transmit output RS485 port,DI port,pluse output |
| Insulation |
Input,output,power shell >5MΩ |
| Weight |
350g |
Intelligent panel meter is a device called an electricity meter,electrical meter, electric meter or kWh meter that measures the amount of electric energy consumed by a commercial business. main electrical parameters such as voltage, current,power factor,frequnecy ect. it can also analysis the quality of the electrical usage and is widely used in all kinds of areas, such as Power distribution cabinet, smart building, automation plant, hospital,shopping plaza, university ect..
